Rough.js 创建具有手绘草图风格效果的图形

Rough.js

Rough.js 是一个轻量（压缩后小于 9kB）图形库，可让您以素描草图、手绘风格绘制图形。该库定义了绘制直线、曲线、弧线、多边形、圆和椭圆等基本元素。它还支持绘制 SVG 路径。

Rough.js 可与 Canvas 和 SVG 配合使用。

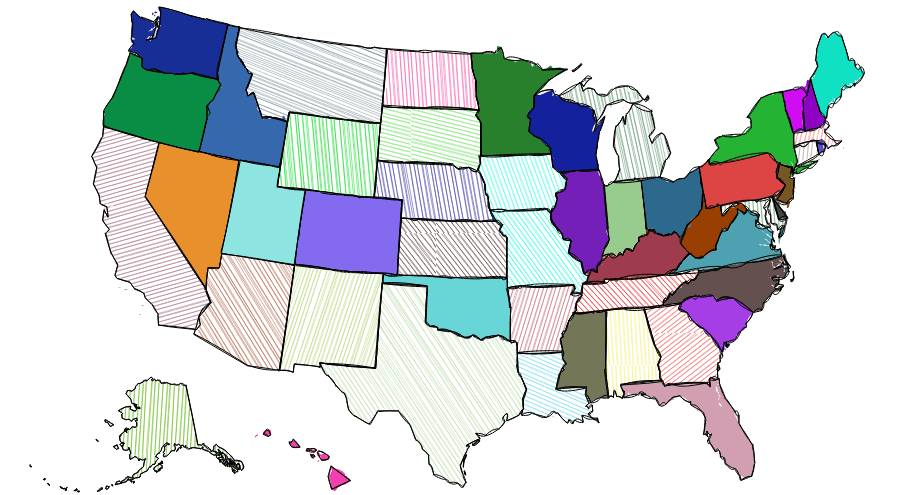

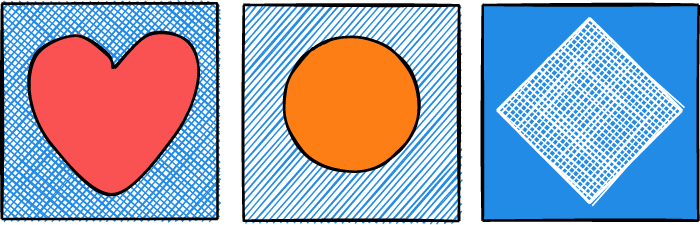

Rough.js sample

Install

Install from npm:

npm install --save roughjs

And use it in your code:

import rough from 'roughjs';

Usage

View Full Rough.js API is available on Github.

Rough.js rectangle

const rc = rough.canvas(document.getElementById('canvas'));
rc.rectangle(10, 10, 200, 200); // x, y, width, height

or SVG

const rc = rough.svg(svg);
let node = rc.rectangle(10, 10, 200, 200); // x, y, width, height
svg.appendChild(node);

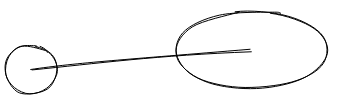

Lines and Ellipses

Rough.js rectangle

rc.circle(80, 120, 50); // centerX, centerY, diameter
rc.ellipse(300, 100, 150, 80); // centerX, centerY, width, height
rc.line(80, 120, 300, 100); // x1, y1, x2, y2

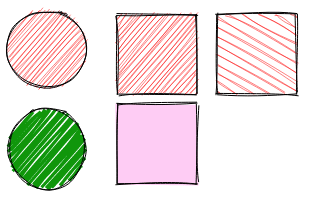

Filling

Rough.js rectangle

rc.circle(50, 50, 80, { fill: 'red' }); // fill with red hachure
rc.rectangle(120, 15, 80, 80, { fill: 'red' });
rc.circle(50, 150, 80, {
  fill: "rgb(10,150,10)",
  fillWeight: 3 // thicker lines for hachure
});
rc.rectangle(220, 15, 80, 80, {
  fill: 'red',
  hachureAngle: 60, // angle of hachure,
  hachureGap: 8
});
rc.rectangle(120, 105, 80, 80, {
  fill: 'rgba(255,0,200,0.2)',
  fillStyle: 'solid' // solid fill
});

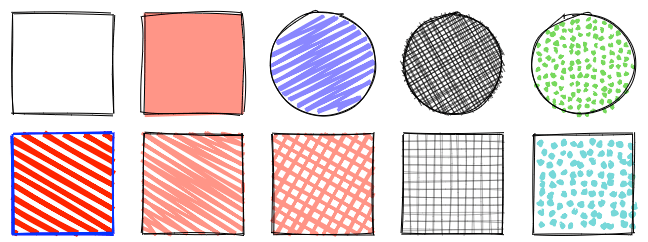

填充样式可以是：黑线（默认）、实线、之字形、十字划痕、点、旭日纹、虚线或之字线

Rough.js fill examples

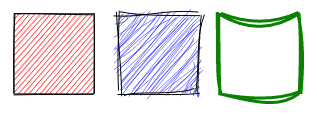

素描草绘风格

Rough.js rectangle

rc.rectangle(15, 15, 80, 80, { roughness: 0.5, fill: 'red' });
rc.rectangle(120, 15, 80, 80, { roughness: 2.8, fill: 'blue' });
rc.rectangle(220, 15, 80, 80, { bowing: 6, stroke: 'green', strokeWidth: 3 });

SVG Paths

Rough.js rectangle

rc.path('M80 80 A 45 45, 0, 0, 0, 125 125 L 125 80 Z', { fill: 'green' });
rc.path('M230 80 A 45 45, 0, 1, 0, 275 125 L 275 80 Z', { fill: 'purple' });
rc.path('M80 230 A 45 45, 0, 0, 1, 125 275 L 125 230 Z', { fill: 'red' });
rc.path('M230 230 A 45 45, 0, 1, 1, 275 275 L 275 230 Z', { fill: 'blue' });
